WR3387K-8 : NETWORK CONTROL UNIT (NCU)
Model : WR3387K-8 | Manufacturer / Supplier : SY SYSTEM | Solution : FULL-2WAY Lighting System

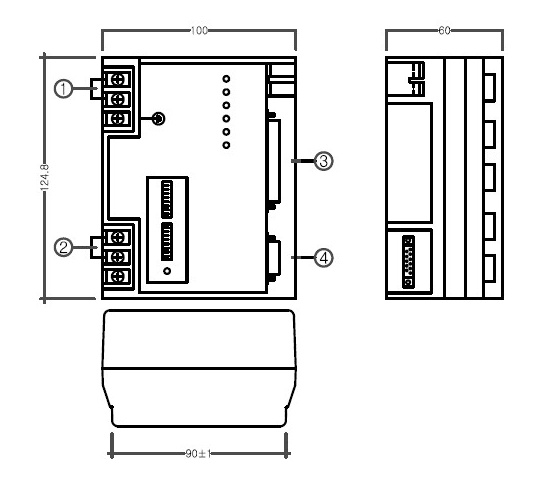

Dimensional Outline & Structure Drawing (Drawing Dimensions)
1. Rating Specifications
| Item | Rating Specification Details |
|---|---|
| 1 | Rated Voltage : AC 24V ± 10% 60Hz |
| 2 | Current Consumption : 150mA |
| 3 | Operating Temperature : -10 ℃ ~ 50 ℃ |
| 4 | Operating Humidity : 95% RH or less |
| 5 | NCU to Host PC Communication : Direct connection (RS-232C) D-sub 25-Pin (9600 BPS, 7-bit even parity) |
| 6 | NCU to LIU Communication : Two-wire shielded (RS-485) |
| 7 | NCU to Host PC Transmission Speed : Configurable via DIP Switch (1200 / 2400 / 9600 / 19200 / 57600 BPS) |
| 8 | NCU to LIU Communication Speed : Configurable via DIP Switch (RS-485 9600 / 19200 BPS) |
| 9 | LIU Capacity : Max 31 units |
| 10 | Load Control Circuits : 7,936 circuits when connected with LIU and WRT2050 |
| 11 | Host to NCU Distance : Max 15m direct connection |
2. Key Features & Control Characteristics (Features)
This product is a professional smart lighting control unit installed in central control panels and distribution boards for commercial buildings, hotels, government facilities, and industrial complexes.
For project schematic design, wiring diagrams, system programming, and bulk delivery quotes, please contact SY SYSTEM Customer Support for prompt technical assistance.
Registered Inquiries
No inquiries found.
Shipping & Delivery Information
Delivery is processed via standard commercial freight or courier service within 2-4 business days after order confirmation. For custom control panels and large project orders, delivery schedules are arranged based on project construction timelines.
Warranty, Exchange & A/S Information
All SY SYSTEM products are covered by our standard genuine manufacturer warranty. In the event of initial defects, replacement or rapid technical A/S support will be provided. Please contact our Customer Support team for RMA or warranty assistance.
