20A HID RELAY (1P) | Authentic Lighting Control System
WR6161K-8 : 20A HID RELAY (1P)
Model : WR6161K-8 | Manufacturer / Supplier : SY SYSTEM | Solution : FULL-2WAY Lighting System

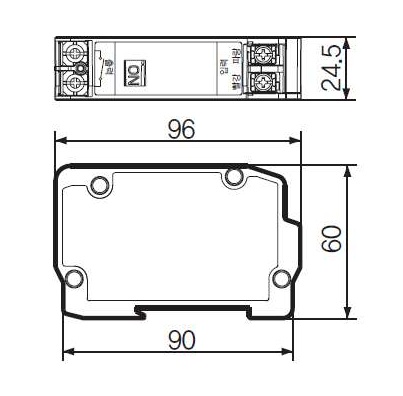

Dimensional Outline & Structure Drawing (Drawing Dimensions)
1. Rating Specifications
| Item | Rating Specification Details |
|---|---|
| 1 | Output Voltage & Current : AC 300V / 20A, 60Hz |
| 2 | Input Voltage : AC 24V |
| 3 | Operating Voltage Range : 18 ~ 30V |
| 4 | Operating Speed : 20 cycles/min (Over 60,000 cycles) |
| 5 | Operating Temperature : -30 ℃ ~ 50 ℃ |
| 6 | Operating Humidity : 85% RH or less (non-condensing) |
2. Key Features & Control Characteristics (Features)
This product is a professional smart lighting control unit installed in central control panels and distribution boards for commercial buildings, hotels, government facilities, and industrial complexes.
For project schematic design, wiring diagrams, system programming, and bulk delivery quotes, please contact SY SYSTEM Customer Support for prompt technical assistance.
