WRT2050-80 : TRANSMISSION UNIT (PANEL USE) (CPU) Summary & Order

TRANSMISSION UNIT (PANEL USE) (CPU) | Authentic Lighting Control System

Options: 0, Additional Options: 0

Price 2,500,000 KRW
Points 0 Pts
Shipping Fee Pay with Order
Manufacturer SY SYSTEM
Origin Republic of Korea / Japan
Brand FULL-2WAY
Model WRT2050-80
Close Window

Selected Options

  • WRT2050-80 : TRANSMISSION UNIT (PANEL USE) (CPU)
    +0 KRW
Wishlist

TRANSMISSION UNIT (PANEL USE) (CPU) | Authentic Lighting Control System

Lighting Control Product Solutions (FULL-2WAY)

WRT2050-80 : TRANSMISSION UNIT (PANEL USE) (CPU)

Model : WRT2050-80 | Manufacturer / Supplier : SY SYSTEM | Solution : FULL-2WAY Lighting System

Supply Price : KRW 2,500,000 (Excl. VAT)
Genuine Warranty & SY SYSTEM Technical Support

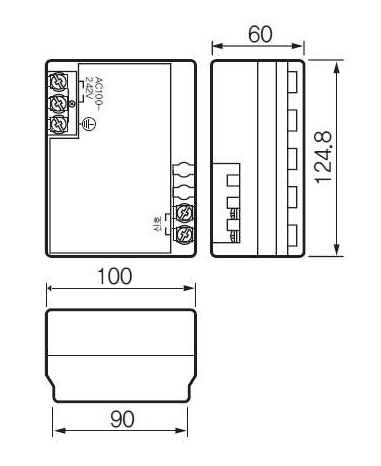

Dimensional Outline & Structure Drawing (Drawing Dimensions)

WRT2050-80 Drawing Dimensions
※ All drawing dimensions are in mm. Please verify installation specifications and wiring requirements prior to installation.

1. Rating Specifications

ItemRating Specification Details
1Rated Voltage : 220V ± 10% 60Hz
2Output Current : 500mA
3Power Consumption : 30W
4Control Circuits : Max 256 circuits
5Memory Backup : Non-volatile memory
6Transmission Method : 2-wire transmission method
7Signal I/O : 24V
8Operating Temperature : -10 ℃ ~ 50 ℃
9Operating Humidity : 85% RH or less (no load)
10Max Signal Wiring Length : 500m (Up to 3,000m with 5 amplifiers)
11Signal Transmission Method : Multiple transmission method (Cut-in signal)
12Signal Cable Spec : Non-polarized 2-wire (1.5mm² or higher)
13Transmission Speed : Approx. 15msec / Terminal Unit
14Relay Response Time : Max 0.2 sec

2. Key Features & Control Characteristics (Features)

✓
Feature 1 : Main CPU controlling individual circuit execution, bidirectional communication, and switching signals across the entire system.
✓
Feature 2 : Supports manual override for all circuits simultaneously as well as individual and partial group control.
✓
Feature 3 : Powerful programming interface supporting Individual (256 circuits), Group (127 circuits), Pattern (72 circuits), Dimming (256 circuits), and Timer operations.
✓
Feature 4 : Built-in sequential power-up function to prevent instantaneous voltage drop when restoring power after blackout.
System Design / CAD Drawings / Supply Quote Inquiries

This product is a professional smart lighting control unit installed in central control panels and distribution boards for commercial buildings, hotels, government facilities, and industrial complexes.
For project schematic design, wiring diagrams, system programming, and bulk delivery quotes, please contact SY SYSTEM Customer Support for prompt technical assistance.

Phone Inquiry: +82-70-7571-0405
Fax Inquiry: +82-70-7517-0405
Email Inquiry: [email protected]
