WRT3364K-8 : Passive Infrared Ceiling Unit (Wide Area Motion Sensor)
Model : WRT3364K-8 | Manufacturer / Supplier : SY SYSTEM | Solution : FULL-2WAY Lighting System

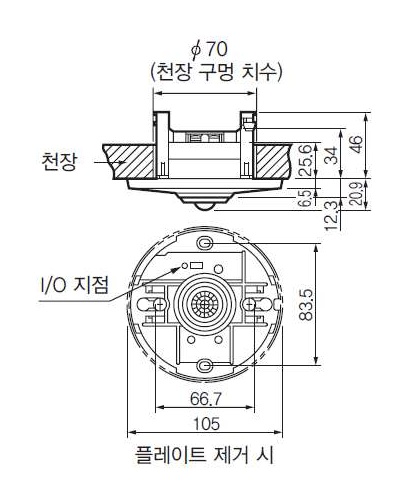

Dimensional Outline & Structure Drawing (Drawing Dimensions)
1. Rating Specifications
| Item | Rating Specification Details |
|---|---|
| 1 | Signal Voltage : ±24V |
| 2 | Signal Current : 20mA |
| 3 | Effective Detection Range : Height 2.5m recommended, Diameter 8.6m (approx. 120°, tolerance ±1m / ceiling height 2.4m, max 4.2m) |
| 4 | Detection Method : Passive infrared thermal variation detection |
| 5 | Detection Coverage : Wide-angle diameter 8.6m |
2. Key Features & Control Characteristics (Features)
This product is a professional smart lighting control unit installed in central control panels and distribution boards for commercial buildings, hotels, government facilities, and industrial complexes.
For project schematic design, wiring diagrams, system programming, and bulk delivery quotes, please contact SY SYSTEM Customer Support for prompt technical assistance.
